TJH-8 Bellow Type Load Cell
2026/6/30

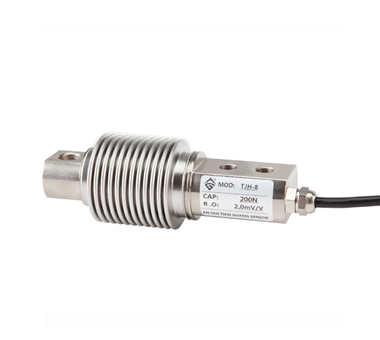

TJH-8 Bellow Type Load Cell
Anti-eccentric load, aurora welding, good sealing performance, and can be used in tension and compression. This load cell for sale is suitable for the measurement and control of electronic scales, belt scales, hopper scales and other force values.
Specifications of TJH-8 Bellow Type Load Cell
| Technical Parameter | |
| Rated Load | 0.1~10 kN |
| Comprehensive Precision | 0.02~0.05% FS |
| Sensitivity | 2.0 mV/V |
| Creep | ±0.02% FS/30min |
| Zero Output | ±1% FS |
| Temperature Effect On Zero | ±0.02% FS/10℃ |
| Temperature Effect On Output | ±0.02% FS/10℃ |
| Operating Temperature Range | -20~+65 ℃ |
| Input Resistance | 380±30 Ω |
| Output Resistance | 350±3 Ω |
| Insulation Resistance | ＞5000 MΩ |
| Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC |
| Material | Alloy Steel or Stainless Steel |
| Load Cell Mode Of Connection | Input+: Red |
| Input-: Black | |
| Output+: Green | |
| Output-: White | |
Dimension Drawing of TJH-8 Bellow Type Load Cell
