TJH-10 Micro Load Cell
2026/6/30

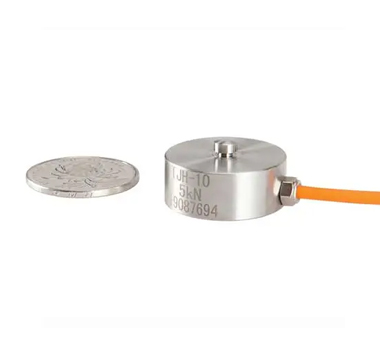

TJH-10 Micro Load Cell
The micro load cell is made in stainless steel material, small size. The micro load cell sensor is suitable for force measurement with limited space. The micro force sensor is commonly used in some fatigue tests, strength tests or laboratory occasions.
Specifications of TJH-10 Micro Load Cell
| Technical Parameter | |
| Rated Load | 0.1~20 kN |
| Comprehensive Precision | 0.5-1%FS |
| Sensitivity | 0.8-1.5mV/V |
| Creep | ±0.05% FS/30min |
| Zero Output | ±2% FS |
| Temperature Effect On Zero | ±0.05% FS/10℃ |
| Temperature Effect On Output | ±0.1% FS/10℃ |
| Operating Temperature Range | -20~+65 ℃ |
| Input Resistance | 380±30 Ω |
| Output Resistance | 350±3 Ω |
| Insulation Resistance | ＞5000 MΩ |
| Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC |
| Material | Stainless Steel |
| Load Cell Mode Of Connection | Input+: Red |
| Input-: Black | |
| Output+: Green | |
| Output-: White | |
Dimension Drawing of TJH-10 Micro Load Cell
