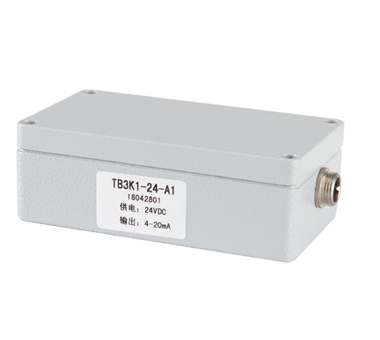

TB3K Weighing Transmitter
2026/6/30
TB3K Weighing Transmitter
1. In addition to the characteristics of ordinary transducers, this load cell amplifier module can also reduce the harmonic interference caused by transducers.
2. Good electromagnetic tolerance(EMS).
Specifications of TB3K Weighing Transmitter
| Technical Parameter | |
| Rated Input | ±20 mV |
| Rated Output | V1: 0~5V |
| V2: 0~10V | |
| V3: 0~±5V | |
| V4: 0~±10V | |
| A1: 4-20mA | |
| Simultaneously Output V1+A1 | |
| Precision | ≤±0.1% FS |
| Supply Voltage | 10(12)~36V DC |
| Operating Temperature Range | -20~70 ℃ |
| Protection Level | IP65 |
| Size | Single-channel: 110*64*37 mm |
| Multi-channel: 158*100*65 mm | |
