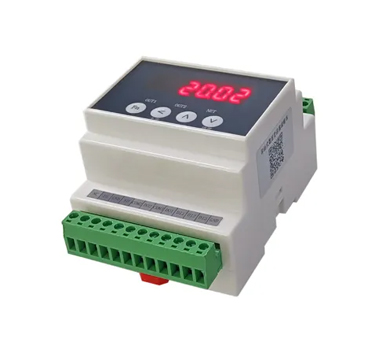

TB3SDG Weighing Transmitter

1. Rail type digital display load cell transmitter: compact size,high accuracy,high cost-effectiveness

2. Sensor interface: 5V DC excitation voltage, Can drive up to 6pcs of 350Ω sensors.

3. Communication interface: One isolated RS232 and one isolated RS485.

4. Communication protocol: MODBUS-RTU.

5. Display: 6-digit LED digital tube, display range -199999~999999.

6. Adaptive digital filtering, no need to manually set filtering coefficients.

7. Switching inputs:External three can be used for cleaning,removing tare weight,restoring tare weight.

8. Switching output: Two upper and lower limit outputs, two optocoupler relay outputs.

9. Installation method: 35mm DIN rail mounting
