TY5D/C Weighing Indicator
2026/6/30

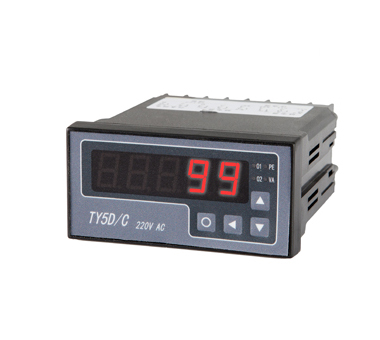

TY5D/C Weighing Indicator
1. 1-4 channel±20mV signal input.
2. Output excitation voltage 5V, current about 200mA.
3. One-click zero clearing function.
4. Up to 2 channels relay output.
Specifications of TY5D/C Weighing Indicator
| Technical Parameter | |
| Indicator Power Supply | 100V~240V AC or 24V DC |
| Working Environment | 0℃~50℃ |
| Humidity | Below 90%RH |
| Overall Dimension | 96*48*112 (mm) |
| Hole Size | 92*45 (mm) |
| Basic error | ±0.05% F·S. |
| Sampling Speed | 10 Times/Sec |
| Display Range |
-19999-99999 |
