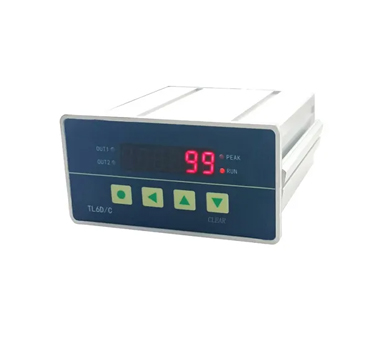

TY6D-C Weighing Indicator
2026/6/30
TY6D-C Weighing Indicator
This instrument is compact size,uses an aluminum alloy casing,Suitable for high precision measurement applications.
Optional function:
1.High precision transmitter output (4~20mA, 0~5V, 0~10V)
2.2 channel relays output
3.Support TG one data collection and management software
Specifications of TY6D-C Weighing Indicator
| Technical Parameter | |
| Indicator power supply | 12~36V DC、12~24V AC |
| Working Environment | 0℃~50℃ |
| Humidity | Below 90%RH |
| Display Range | -199999 ~ 999999 |
| Display resolution | 4/999999 |
| Input signal type | Voltage 0~25mV |
| Measurement resolution | 24 bit A/D converter |
| Measurement control cycle | 0.15 second |
| Hole Size | 92*44(mm) |
