TJZ-1 Rope Tension Load Cell
2026/6/30

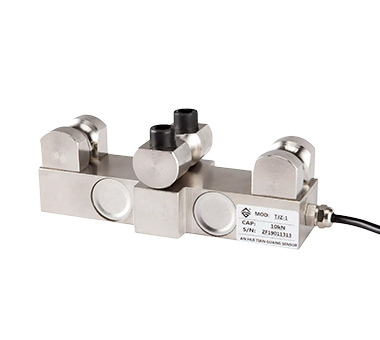

TJZ-1 Rope Tension Load Cell
High precision and stable performance. Suitable for long-term measurement and monitoring of wire rope tension.
Specifications of TJZ-1 Rope Tension Load Cell
| Technical Parameter | |
| Rated Load | 10~200 kN |
| Comprehensive Precision | 0.3% FS |
| Sensitivity | 1.0~1.5mV/V |
| Creep | ±0.05% FS/30min |
| Zero Output | ±1% FS |
| Temperature Effect On Zero | ±0.05% FS/10℃ |
| Temperature Effect On Output | ±0.05% FS/10℃ |
| Operating Temperature Range | -20~+65 ℃ |
| Input Resistance | 750±50 Ω |
| Output Resistance | 700±5 Ω |
| Insulation Resistance | ＞5000 MΩ |
| Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC |
| Material | Alloy Steel or Stainless Steel |
| Load Cell Mode Of Connection | Input+: Red |
| Input-: Black | |
| Output+: Green | |
| Output-: White | |
Dimension Drawing of TJZ-1 Rope Tension Load Cell
