TJN-2 Static Torque Sensor
2026/6/30

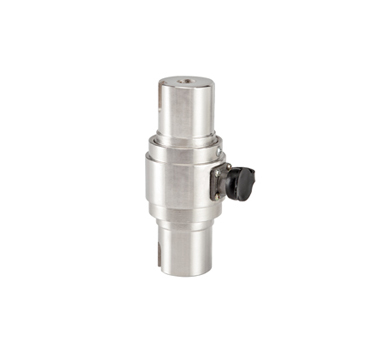

TJN-2 Static Torque Sensor
Suitable for the measurement and control of static and discontinuous rotation torque.
Specifications of TJN-2 Static Torque Sensor
| Technical Parameter | |
| Rated Load | 100~5000 Nm |
| Comprehensive Precision | 0.1~0.5% FS |
| Sensitivity | 1.0~2.0mV/V |
| Creep | ±0.05% FS/30min |
| Zero Output | ±1% FS |
| Temperature Effect On Zero | ±0.05% FS/10℃ |
| Temperature Effect On Output | ±0.05% FS/10℃ |
| Operating Temperature Range | -20~+65 ℃ |
| Input Resistance | 380±10 or 750±15 Ω |
| Output Resistance | 350±3 or 750±5 Ω |
| Insulation Resistance | ＞5000 MΩ |
| Safe Load Limit | 120% FS |
| Bridge Voltage | Reference 10V DC |
| Material | Alloy Steel |
| Load Cell Mode Of Connection | Input+: Red |
| Input-: Black | |
| Output+: Green | |
| Output-: White | |
Dimension Drawing of TJN-2 Static Torque Sensor
